Install abilists

Install and configure abilists on your own server.

It is a detailed manual for Abilists to be installed mainly on Linux OS or Windows OS.

Install & Configure

1, Download

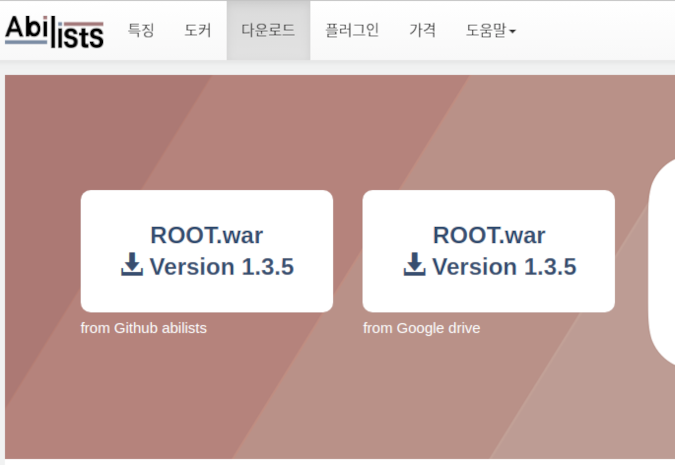

  1. Download the h2db (database) and ROOT (Abilities War) files from the following download page.

    www.abilists.com


2,Installing on Linux

  1. Go to the webapps directory where Tomcat is installed.(Where Tomcat is installed [/usr/local/tomcat])
    $ cd /usr/local/tomcat/webapps/

  2. Delete the initial ROOT directory from the Tomcat installation.
    $ rm -rf ./ROOT

  3. Download .war directly from the web or download the file as the following wget command and move the war file to webapps under the Tomcat directory.
    $ sudo wget https://github.com/abilists/abilists_client/raw/master/webapps/ROOT.war

    $ mv ./Downloads/ROOT.war /usr/local/tomcat/webapps/

  4. Start Tomcat.
    $ /usr/local/tomcat/bin/startup.sh

  5. The following is the logs image after running Tomcat.
    abilists@abilists-mint-linux /usr/local/tomcat $ ./bin/startup.sh
    Using CATALINA_BASE:   /usr/local/tomcat
    Using CATALINA_HOME:   /usr/local/tomcat
    Using CATALINA_TMPDIR: /usr/local/tomcat/temp
    Using JRE_HOME:        /usr
    Using CLASSPATH:       /usr/local/tomcat/bin/bootstrap.jar:/usr/local/tomcat/bin/tomcat-juli.jar
    Tomcat started.
    abilists@abilists-mint-linux /usr/local/tomcat $
    abilists@abilists-mint-linux /usr/local/tomcat $ tail -10 ./logs/catalina.out
    21 Mar 2019;23:37:47.678 [localhost-startStop-1] INFO  o.s.s.c.ThreadPoolTaskExecutor.initialize(165) - Initializing ExecutorService
    21 Mar 2019;23:37:47.723 [localhost-startStop-1] INFO  o.s.w.c.ContextLoader.initWebApplicationContext(344) - Root WebApplicationContext: initialization completed in 6583 ms
    21-Mar-2019 23:37:47.743 INFO [localhost-startStop-1] org.apache.catalina.startup.HostConfig.deployWAR Deployment of web application archive /usr/local/tomcat/webapps/ROOT.war has finished in 8,183 ms
    21-Mar-2019 23:37:47.743 INFO [localhost-startStop-1] org.apache.catalina.startup.HostConfig.deployDirectory Deploying web application directory /usr/local/tomcat/webapps/host-manager
    21-Mar-2019 23:37:47.765 INFO [localhost-startStop-1] org.apache.catalina.startup.HostConfig.deployDirectory Deployment of web application directory /usr/local/tomcat/webapps/host-manager has finished in 22 ms
    21-Mar-2019 23:37:47.765 INFO [localhost-startStop-1] org.apache.catalina.startup.HostConfig.deployDirectory Deploying web application directory /usr/local/tomcat/webapps/manager
    21-Mar-2019 23:37:47.781 INFO [localhost-startStop-1] org.apache.catalina.startup.HostConfig.deployDirectory Deployment of web application directory /usr/local/tomcat/webapps/manager has finished in 15 ms
    21-Mar-2019 23:37:47.783 INFO [main] org.apache.coyote.AbstractProtocol.start Starting ProtocolHandler [http-nio-8081]
    21-Mar-2019 23:37:47.788 INFO [main] org.apache.coyote.AbstractProtocol.start Starting ProtocolHandler [ajp-nio-8009]
    21-Mar-2019 23:37:47.788 INFO [main] org.apache.catalina.startup.Catalina.start Server startup in 8285 ms
    abilists@abilists-mint-linux /usr/local/tomcat $

  6. If you connect to http://localhost:8080 with a Chrome browser, the following screen will be displayed.

    www.abilists.com


3, Install on Windows

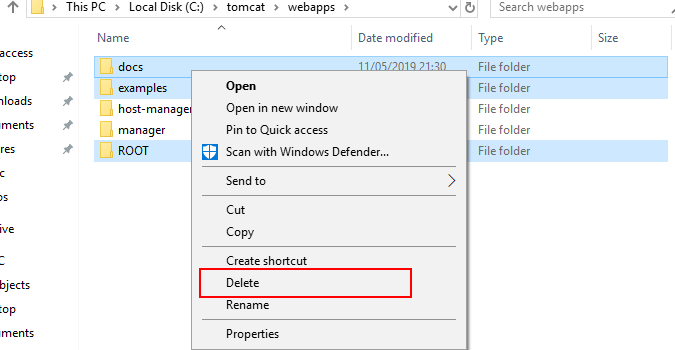

  1. The following is to removes the ROOT, sample, and documents directory in Tomcat's webapps.
    The ROOT folder will be deleted so that http://localhost:8080 can be access to Abilists directly
    (Regarding information of Tomcat installation can be found on the Internet.)

    www.abilists.com

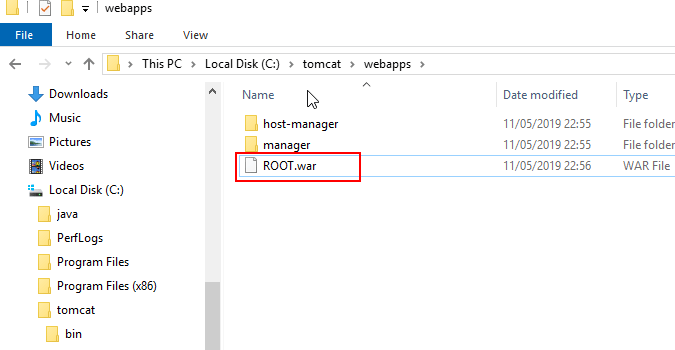

  2. Move the downloaded ROOT.war file to the webapps folder as shown below.

    www.abilists.com

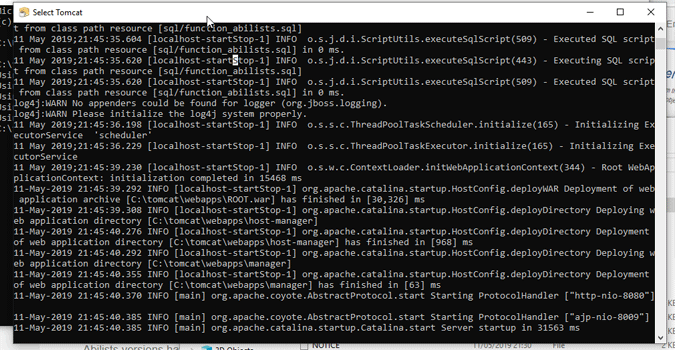

  3. Run startup.bat in the Tomcat/bin folder.
    The following image is log screen where Tomcat is started.

    www.abilists.com

  4. If you connect to http://localhost:8080 with a Chrome browser, the following screen will be displayed.

    www.abilists.com


Server & Configure

1,Tomcat8.5 Configuration

  1. It is recommended to set up Tomcat server on Linux base.

  2. Go to where Tomcat is installed. (Where Tomcat is installed [/usr/local/tomcat])

    $ cd /usr/local/tomcat

  3. Please set the following value to the Connector part in Tomcat/conf/server.xml.
    <Connector executor="tomcatThreadPool"
    		port="8080" protocol="HTTP/1.1"
    		connectionTimeout="20000"
    		redirectPort="8443"
    		maxHttpHeaderSize="17364"
    		acceptCount="150"
    		backlog="200"
    		maxThreads="200"
    		minSpareThreads="75"
    		maxKeepAliveRequests="1"
    		maxSavePostSize="0"
    		enableLookups="false"
    		server="false"
    		URIEncoding="UTF-8"
    		compression="on"
    		compressionMinSize="2048"
    		noCompressionUserAgents="gozilla, traviata"
    		compressableMimeType="text/html,text/xml,text/x-json" />

  4. Please Change autoDeploy="true" for autoDeploy="false".
    <Host name="localhost"  appBase="webapps"
    	unpackWARs="true" autoDeploy="false">


2, HTTPS 사용하기 (자세한건 링크을 이용해 주시기 바랍니다.)

  1. 아파치를 설치

  2. mod_proxy 사용해서 톰캣에 연결

  3. https 인증서 발급 및 설치
